8 W/m-K High Thermal Conductivity Silicone Gap Pad 0.5mm Thermal Interface Material High Performance Thermal Pad

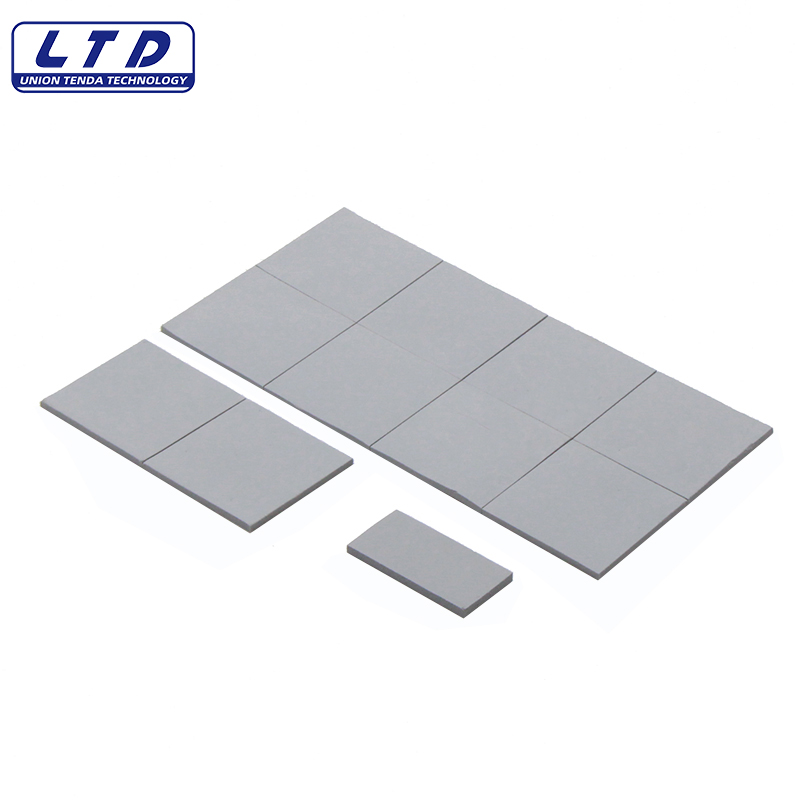

Thermal Silicone Pad | LC800
The LC800 thermal silicone pad is a thermal material specifically designed for high-power density devices and applications with high heat dissipation demands. It effectively enhances the heat dissipation efficiency of devices by closely connecting the heat source to the heatsink, thereby reducing interface thermal resistance. With its excellent thermal conductivity, softness, and compressibility, it is widely used in various electronic devices, communication equipment, and automotive electronics.

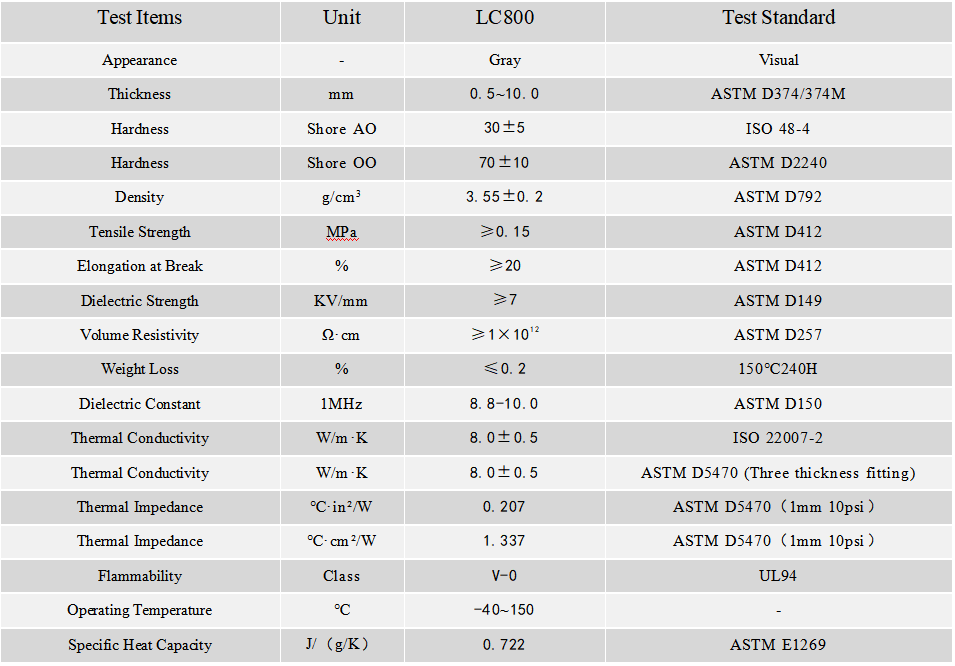

Test Items
Unit
LC800
Test Standard
Appearance
-
Gray
Visual
Thickness
mm
0.5~10.0
ASTM D374/374M
Hardness
Shore AO
30±5
ISO 48-4
Hardness
Shore OO
70±10
ASTM D2240
Density
g/cm3
3.55±0.2
ASTM D792
Tensile Strength
MPa
≥0.15
ASTM D412
Elongation at Break
%
≥20
ASTM D412
Dielectric Strength
KV/mm
≥7
ASTM D149
Volume Resistivity
Ω·cm
≥1×1012
ASTM D257
Weight Loss
%
≤0.2
150℃240H
Dielectric Constant
1MHz
8.8-10.0
ASTM D150
Thermal Conductivity
W/m·K
8.0±0.5
ISO 22007-2
Thermal Conductivity
W/m·K
8.0±0.5
ASTM D5470 (Three thickness fitting)
Thermal Impedance
℃·in²/W
0.207
ASTM D5470(1mm 10psi)
Thermal Impedance
℃·cm²/W
1.337
ASTM D5470(1mm 10psi)
Flammability
Class
V-0
UL94
Operating Temperature
℃
-40~150
-
Specific Heat Capacity
J/(g/K)
0.722
ASTM E1269

|
Test Items |
Unit |
LC800 |
Test Standard |
|
Appearance |
- |
Gray |
Visual |
|
Thickness |
mm |
0.5~10.0 |
ASTM D374/374M |
|
Hardness |
Shore AO |
30±5 |
ISO 48-4 |
|
Hardness |
Shore OO |
70±10 |
ASTM D2240 |
|
Density |
g/cm3 |
3.55±0.2 |
ASTM D792 |
|
Tensile Strength |
MPa |
≥0.15 |
ASTM D412 |
|
Elongation at Break |
% |
≥20 |
ASTM D412 |
|
Dielectric Strength |
KV/mm |
≥7 |
ASTM D149 |
|
Volume Resistivity |
Ω·cm |
≥1×1012 |
ASTM D257 |
|
Weight Loss |
% |
≤0.2 |
150℃240H |
|
Dielectric Constant |
1MHz |
8.8-10.0 |
ASTM D150 |
|
Thermal Conductivity |
W/m·K |
8.0±0.5 |
ISO 22007-2 |
|
Thermal Conductivity |
W/m·K |
8.0±0.5 |
ASTM D5470 (Three thickness fitting) |
|
Thermal Impedance |
℃·in²/W |
0.207 |
ASTM D5470(1mm 10psi) |
|
Thermal Impedance |
℃·cm²/W |
1.337 |
ASTM D5470(1mm 10psi) |
|
Flammability |
Class |
V-0 |
UL94 |
|
Operating Temperature |
℃ |
-40~150 |
- |
|
Specific Heat Capacity |
J/(g/K) |
0.722 |
ASTM E1269 |
Typical Applications
-Used for thermal conduction between high-performance computer CPUs, GPUs, and other heat-generating components and heatsinks
-Used for heat dissipation in communication equipment such as base stations, antennas, and 5G modules
-Applied in automotive battery systems, electronic control units (ECU),
Features and Advantages
-Ultra-high thermal conductivity, significantly reducing the risk of overheating
-Easy to assemble and disassemble
-Effectively fills micro-gaps in contact surfaces, reducing thermal resistance
-Exceptional weather and aging resistance, suitable for long-term use
