4 W/m K TIM Thermal Pad Heat Conductive Silicone Heat Sink GPU CPU Thermal Pad

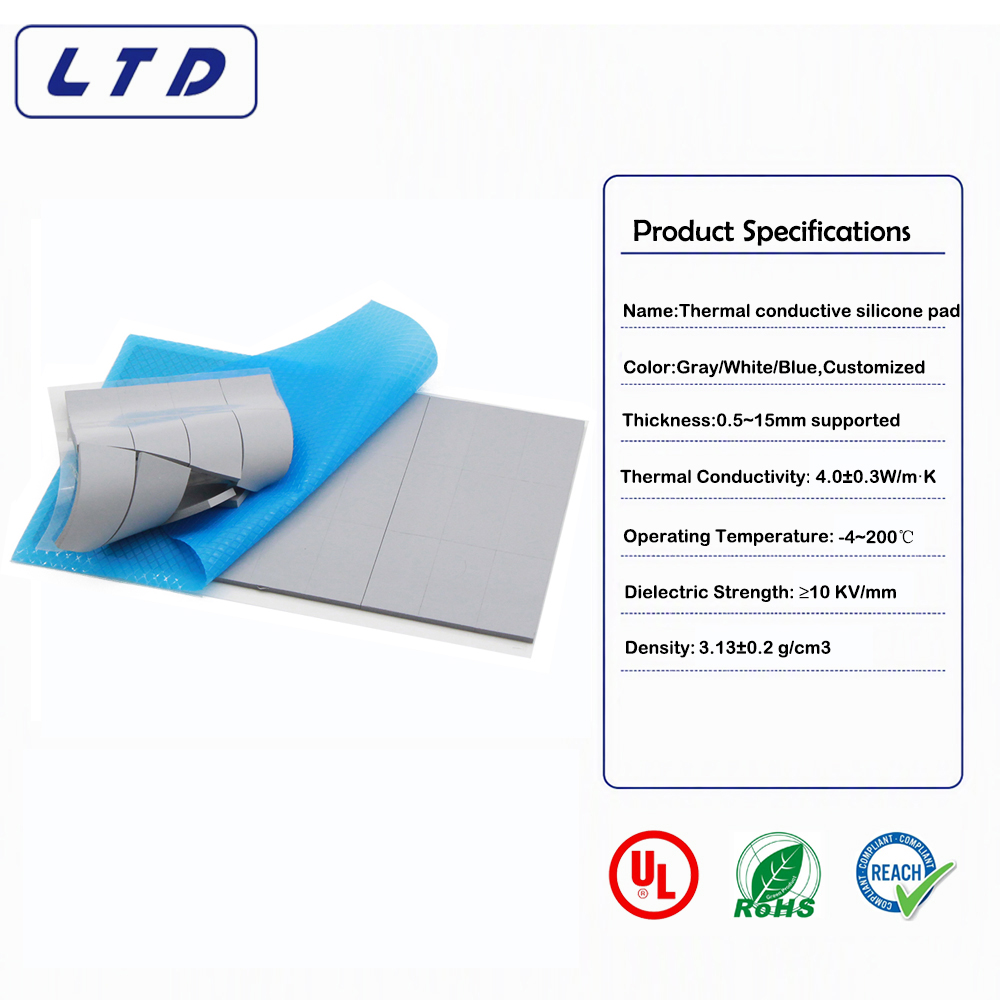

Specification:
4.0±0.3W/m·K Thermal Conductivity
0.5 mm Thickness
Hardness Shore OO 60±10
-40~200 ℃ Operating Temperature
Introduction:
Thermal Interface Material Manufacturer
Custom Size & Shape
0.5~15mm Thickness Available
Die-cutting Available
Fiberglass Reinforced
Single/Double-sided Adhesive
  • Product introduction
  • Technical Parameters
  • Product Application
  • Product Characteristics
4 W/m K TIM Thermal Pad Heat Conductive Silicone Heat Sink Pad GPU CPU Thermal Pad

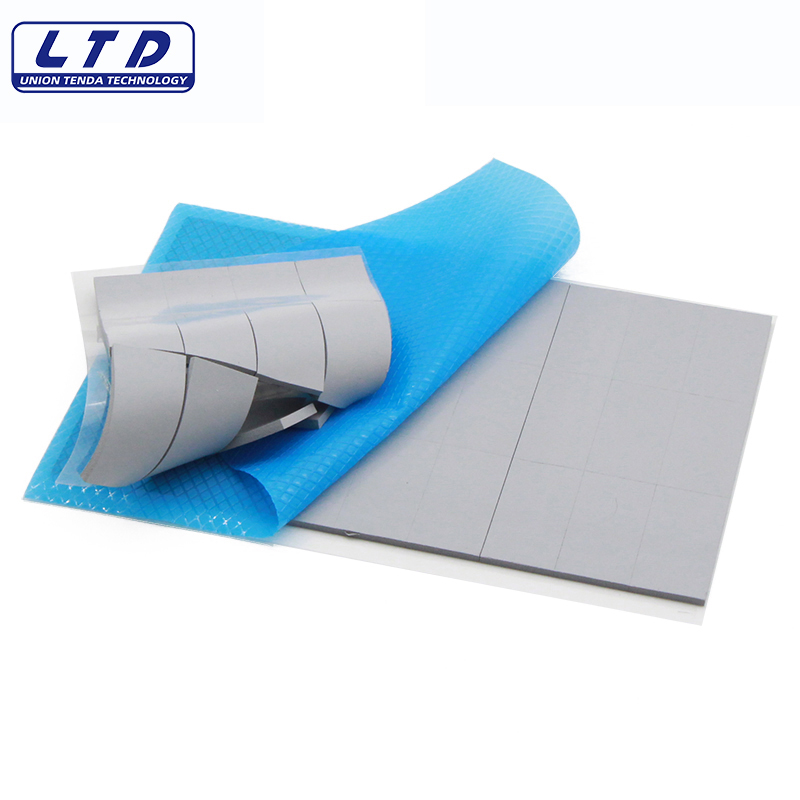

Thermal Silicone Pad |LC400

The LC400 thermal conductive silicone pad is a high-thermal-conductivity gap filler pad with excellent thermal performance.

It is soft with a slight inherent tackiness, making it easy to assemble. It performs well under low compressive force, offering both

effective thermal conductivity and electrical insulation. Positioned between heat-generating components and heat sinks or device enclosures,

it displaces air to ensure full contact, forming a continuous thermal conduction pathway. By using the heat sink or device enclosure

as the thermal dissipation surface, the heat dissipation area is effectively increased, thereby significantly enhancing cooling efficiency.


High performance silicone thermal pad, flexible thermal gap filler with low thermal resistance.
Soft & compressible to fill gaps between heat sink and electronic components.
Good electrical insulation, high temperature resistance, RoHS & UL certified.
Custom die-cut size & thermal conductivity available.

Widely used for power supply, LED, PCB, new energy and industrial electronics cooling, factory sample & OEM service supported.


Test Items

Unit

LC400

Test Standard

Appearance

-

Gray

Visual

Thickness

mm

0.5~10

ASTM D374/374M

Hardness

Shore AO

30±5

ISO 48-4

Hardness

Shore OO

60±10

ASTM D2240

Density

g/cm3

3.13±0.2

ASTM D792

Tensile Strength

MPa

≥0.11

ASTM D412

Elongation at Break

%

≥60

ASTM D412

Dielectric Strength

KV/mm

≥10

ASTM D149

Volume Resistivity

Ω·cm

≥1×1013

ASTM D257

Weight Loss

%

≤0.3

150℃240H

Dielectric Constant

1MHz

7.5-8.4

ASTM D150

Thermal Conductivity

W/m·K

4.0±0.3

ISO 22007-2

Thermal Conductivity

W/m·K

4.0±0.3

ASTM D5470 (Three thickness fitting)

Thermal Impedance

℃·in²/W

0.386

ASTM D5470(1mm 10psi)

Thermal Impedance

℃·cm²/W

2.492

ASTM D5470(1mm 10psi)

Flammability

Class

V-0

UL94

Operating Temperature

℃

-40~200

-

Specific Heat Capacity

J/(g/K)

0.865

ASTM E1269



Features and Advantages
-High thermal conductivity reduces the risk of overheating.
-Natural tackiness makes it easy to assemble and allows for repeated disassembly and reassembly.
-Excellent softness and compressibility enable it to fill gaps of various sizes and uneven surfaces.
-Exceptional weather and aging resistance make it suitable for long-term use.

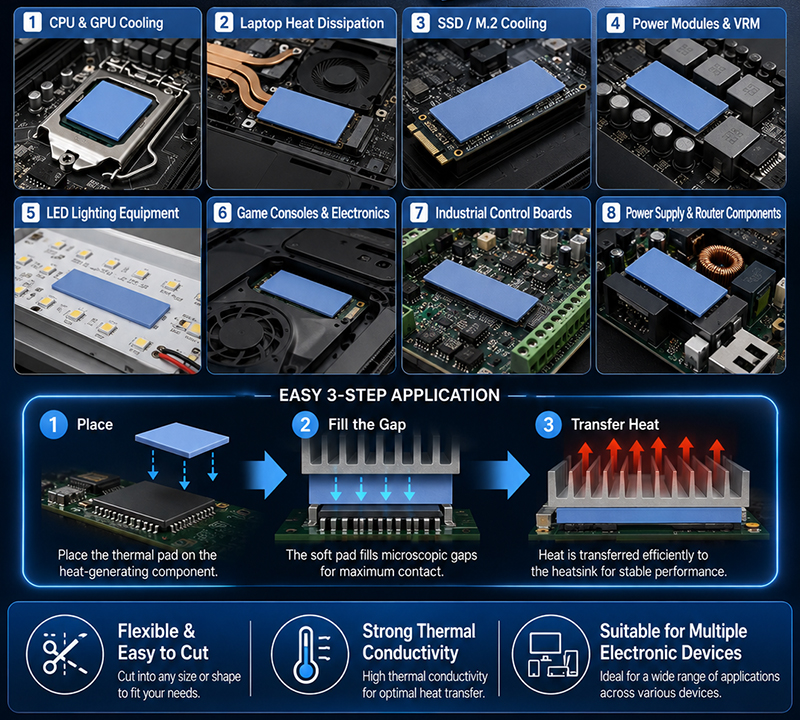

Typical Applications
-Used for thermal conduction between CPUs, GPUs, and other high-heat-generating components and heat sinks.
-Suitable for devices like base stations and routers that require long-term stable cooling.
-Applied to heat-dissipating areas in automotive batteries, electronic control units (ECUs), motor control modules, LED lights, and more.
-Used for thermal management in AC/DC power supplies, inverters, and UPS systems.


Test Items

Unit

LC400

Test Standard

Appearance

-

Gray

Visual

Thickness

mm

0.5~10

ASTM D374/374M

Hardness

Shore AO

30±5

ISO 48-4

Hardness

Shore OO

60±10

ASTM D2240

Density

g/cm3

3.13±0.2

ASTM D792

Tensile Strength

MPa

≥0.11

ASTM D412

Elongation at Break

%

≥60

ASTM D412

Dielectric Strength

KV/mm

≥10

ASTM D149

Volume Resistivity

Ω·cm

≥1×1013

ASTM D257

Weight Loss

%

≤0.3

150℃240H

Dielectric Constant

1MHz

7.5-8.4

ASTM D150

Thermal Conductivity

W/m·K

4.0±0.3

ISO 22007-2

Thermal Conductivity

W/m·K

4.0±0.3

ASTM D5470 (Three thickness fitting)

Thermal Impedance

℃·in²/W

0.386

ASTM D5470(1mm 10psi)

Thermal Impedance

℃·cm²/W

2.492

ASTM D5470(1mm 10psi)

Flammability

Class

V-0

UL94

Operating Temperature

℃

-40~200

-

Specific Heat Capacity

J/(g/K)

0.865

ASTM E1269

Features and Advantages
-High thermal conductivity reduces the risk of overheating.
-Natural tackiness makes it easy to assemble and allows for repeated disassembly and reassembly.
-Excellent softness and compressibility enable it to fill gaps of various sizes and uneven surfaces.
-Exceptional weather and aging resistance make it suitable for long-term use.
Typical Applications
-Used for thermal conduction between CPUs, GPUs, and other high-heat-generating components and heat sinks.
-Suitable for devices like base stations and routers that require long-term stable cooling.
-Applied to heat-dissipating areas in automotive batteries, electronic control units (ECUs), motor control modules, LED lights, and more.
-Used for thermal management in AC/DC power supplies, inverters, and UPS systems.
