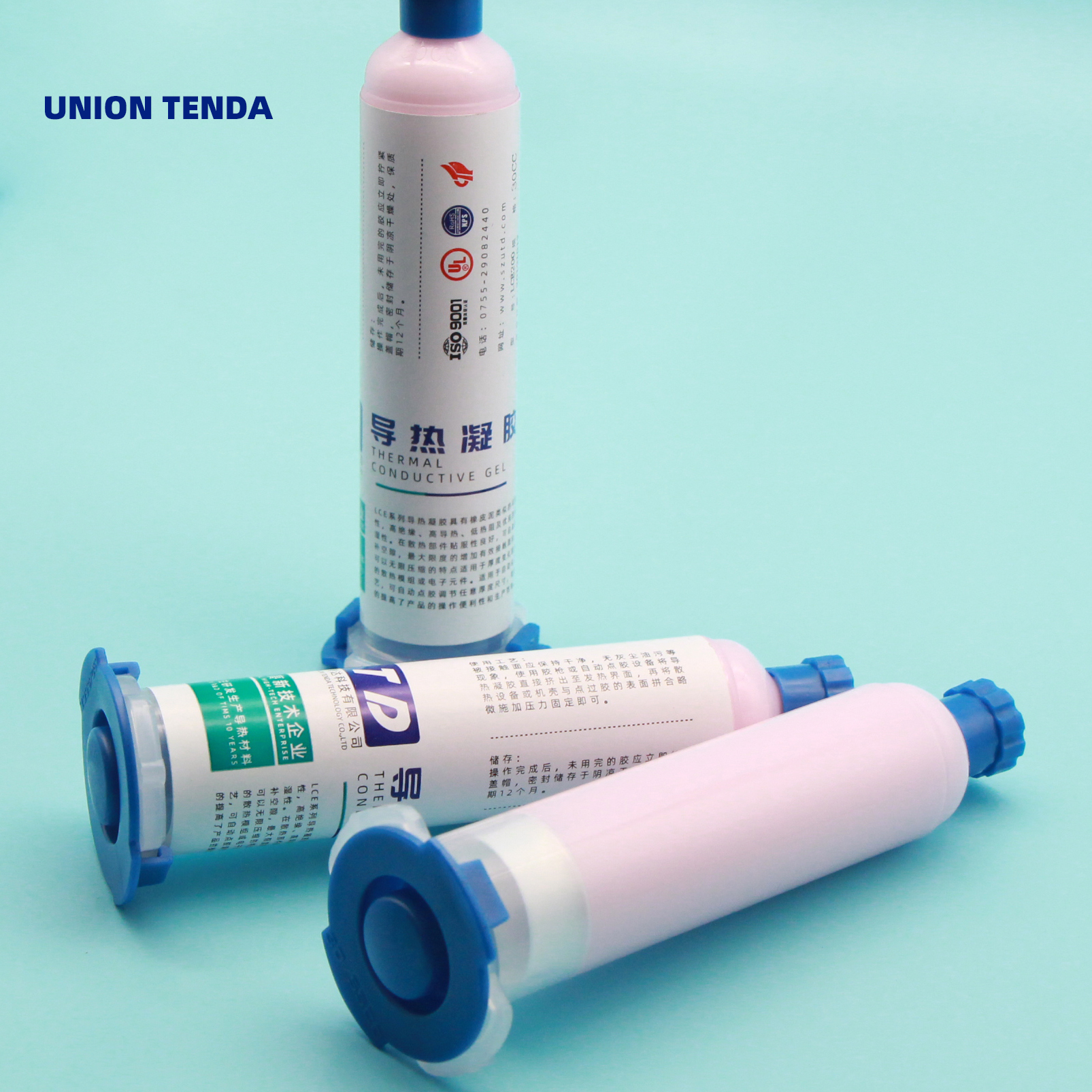

LCE600 6 W/m-K High Thermal One Component Thermal Conductive Gel

Specification:
Thermal Conductivity:6.0±0.3 W/m·K
Thermal Impedance:0.024 ℃·in²/W
Extrusion Rate:≥40 g/min
BLT:≤100 μm
Operating Temperature:-40~150 ℃
Introduction:
LCE600 one component thermal conductive gel offers 6.0 ± 0.3 W/m·K thermal conductivity, electrical insulation, and gap filling from -40 to 150 °C.
  • Product introduction
  • Technical Parameters
  • Product Application
  • Product Characteristics

LCE600 One Component Thermal Conductive Gel | 6 W/m·K

LCE600 is a silicone-based, one component thermal conductive gel designed for efficient thermal management in high-power electronic devices. With a thermal conductivity of 6.0 ± 0.3 W/m·K, it facilitates heat transfer from electronic components to heat sinks or enclosures while providing good electrical insulation.


Its soft, paste-like consistency enables effective gap filling and thermal contact under low pressure. Ready to use without mixing, LCE600 simplifies material preparation and application. With stable performance over an operating temperature range of -40 to 150 °C, it supports efficient cooling and long-term, stable device operation.

Test Items

Unit

LCE600

Test Standard

Appearance

-

Blue

Visual

Density

g/cm3

3.38±0.2

ASTM D792

Extrusion Rate

g/min

≥40

φ2.54mm/90psi

BLT

μm

≤150

-

Dielectric Strength

KV/mm

≥5

ASTM D149

Volume Resistivity

Ω·cm

≥1×1012

ASTM D257

Weight Loss

%

≤0.2

150℃240H

Thermal Conductivity

W/m·K

6.0±0.3

ISO 22007-2

Thermal Conductivity

W/m·K

6.0±0.3

ASTM D5470(Three-Thickness Fit)

Thermal Impedance

℃·in²/W

0.024

ASTM D5470(0.1mm )

Thermal Impedance

℃·cm²/W

0.154

ASTM D5470(0.1mm )

Operating Temperature

℃

-40~150

-

Specific Heat Capacity

J/(g/K)

0.625

ASTM E1269

Features and Advantages


High thermal conductivity: Provides 6.0 ± 0.3 W/m·K thermal conductivity for efficient heat transfer in high-power electronic applications.
Excellent electrical insulation: Supports heat conduction while maintaining electrical insulation.
Soft and conformable: Easily fills gaps between electronic components and heat sinks or enclosures under low pressure.
Ready-to-use formulation: Requires no mixing, simplifying handling and application.
Stable temperature performance: Maintains stable performance across high and low temperatures for long-term reliability.

Material characteristics: Non-volatile, non-corrosive, environmentally friendly, and non-toxic.

Typical Applications


Electronic components and LED lighting: Transfers heat from integrated circuits (ICs), central processing units (CPUs), graphics processing units (GPUs), and LED lighting components to heat sinks.
Power electronics: Provides thermal conduction and gap filling for power modules and power semiconductors.
Communications and server equipment: Supports cooling in communication base stations, 5G devices, servers, and other electronic equipment with high heat output.

Solar photovoltaic modules: Provides thermal conduction in solar photovoltaic applications.


Material Selection and Supplier Evaluation

For buyers evaluating a thermal conductive gel factory or a one component thermal conductive gel manufacturer, LCE600 provides clearly specified thermal and application parameters to support material selection. Its thermal conductivity, thermal impedance, extrusion rate, bond line thickness, and operating temperature range offer a practical basis for assessing suitability for electronic cooling and gap-filling requirements.


Evaluate LCE600 under the intended application conditions to confirm compatibility with your assembly and thermal management requirements.



Test Item
Unit LCE600 Test Methods
Color
- Blue
Visually
Specific Gravity
g/cc
3.38 ASTM D792
Extrusion Rate
g/min
≥15
φ2.54mm 90psi
Thickness After Compression
mm
0.2
-
Weight Loss
% ≤0.2
@150℃240H
Breakdown Voltage
KV/mm
≥5
ASTM D149
Volume Resistivity
Ω·cm
1×1012
ASTM D257
Continuous Use Temp
℃
-40~150
-
Thermal Conductivity
W/m·K
6.0 ISO 22007-2
Thermal impedance
℃·in2 /W
0.024
ASTM D5470
Wireless electronic equipment
Communication electronic hardware equipment
Automotive electronic application equipment
Chassis or related heat dissipation module
Host or small office network equipment
Microprocessors, memory chips and graphics processors
High thermal conductivity, low thermal resistance, good wettability
No settlement, no flow, can fill any uneven gap
Soft, no stress, can be compressed to 0.1 mm thin
The design and application are convenient, and the automatic dispensing can adjust the size of any thickness
