LCE380 4 W/m·K One-Component Non-Curing Thermally Conductive Silicone Gel

Specification:
Excellent thermal conductivity
Stable performance
Soft, Low-Stress
Introduction:
LCE380 4 W/m·K One-Component Non-Curing Thermally Conductive Silicone Gel
Thermal Conductivity:4.0±0.3 W/m·K
Thermal Impedance:0.046 ℃·in²/W
Extrusion Rate:≥40 g/min
BLT:≤30 μm
Operating Temperature:-40~150 ℃
  • Product introduction
  • Technical Parameters
  • Product Application
  • Product Characteristics

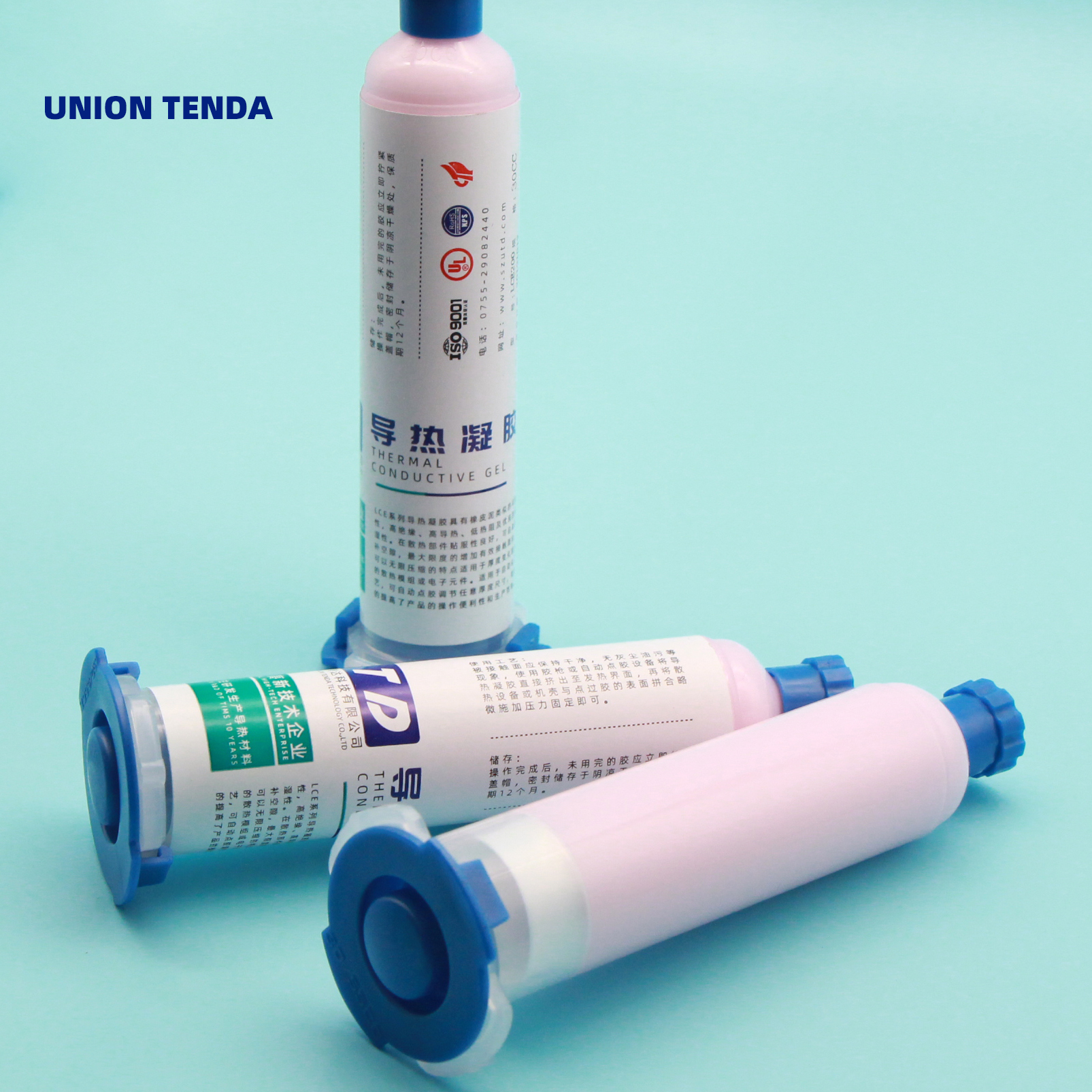

LCE380 One Component Thermal Conductive Gel | 4.0±0.3 W/m·K Heat Conductive Gel



LCE380 one component thermal conductive gel provides efficient heat transfer, gap filling, and electrical insulation for electronic and electrical components.

LCE380 is a silicone-based, one component thermal conductive gel designed for thermal management in electronic devices and electrical components. Its soft, paste-like consistency enables efficient heat conduction under low pressure while filling gaps between electronic components and heat sinks or enclosures for rapid heat transfer.

Ready to use without mixing, LCE380 heat conductive gel offers good thermal stability and electrical insulation. It is suitable for applications requiring both heat conduction and gap filling, supporting efficient cooling and long-term, stable device operation.

Test Items

Unit

LCE380

Test Standard

Appearance

-

Pink

Visual

Density

g/cm3

3.39±0.2

ASTM D792

Extrusion Rate

g/min

≥40

φ2.54mm/90psi

BLT

μm

≤30

-

Dielectric Strength

KV/mm

≥7

ASTM D149

Volume Resistivity

Ω·cm

≥1×1013

ASTM D257

Weight Loss

%

≤0.3

150℃240H

Thermal Conductivity

W/m·K

4.0±0.3

ISO 22007-2

Thermal Conductivity

W/m·K

4.0±0.3

ASTM D5470(Three-Thickness Fit)

Thermal Impedance

℃·in²/W

0.046

ASTM D5470(0.1mm )

Thermal Impedance

℃·cm²/W

0.296

ASTM D5470(0.1mm )

Operating Temperature

℃

-40~150

-

Specific Heat Capacity

J/(g/K)

0.773

ASTM E1269


Features and Advantages

Thermal conductivity and electrical insulation: Provides efficient heat transfer while maintaining good electrical insulation.
Soft, moldable consistency: Easy to handle and conform to gaps between components and cooling surfaces.
Temperature stability: Maintains stable performance at high and low temperatures for long-term reliability.

Material characteristics: Non-volatile, non-corrosive, environmentally friendly, and non-toxic.


Typical Applications

Electronic components and LED lighting: Provides thermal conduction between heat-generating components—including integrated circuits (ICs), central processing units (CPUs), graphics processing units (GPUs), and LED lighting—and heat sinks.
Power electronics: Supports thermal management in power modules and power semiconductors.
Communications and computing equipment: Suitable for cooling communication base stations, 5G devices, servers, and other electronic equipment with high heat output.

Solar photovoltaic modules: Provides thermal conduction in solar photovoltaic applications.



Test Item
Unit LCE380 Test Methods
Color
- Pink
Visually
Specific Gravity
g/cc
3.39 ASTM D792
Extrusion Rate
g/min
≥40
φ2.54mm 90psi
Thickness After Compression
mm
0.1
-
Weight Loss
% ≤0.2
@150℃240H
Breakdown Voltage
KV/mm
≥7
ASTM D149
Volume Resistivity
Ω·cm
1×1013
ASTM D257
Continuous Use Temp
℃
-40~150
-
Thermal Conductivity
W/m·K
3.8 ISO 22007-2
Thermal impedance
℃·in2 /W
0.046
ASTM D5470
Wireless electronic equipment
Communication electronic hardware equipment
Automotive electronic application equipment
Chassis or related heat dissipation module
Host or small office network equipment
Microprocessors, memory chips and graphics processors
High thermal conductivity, low thermal resistance, good wettability
No settlement, no flow, can fill any uneven gap
Soft, no stress, can be compressed to 0.1 mm thin
The design and application are convenient, and the automatic dispensing can adjust the size of any thickness
