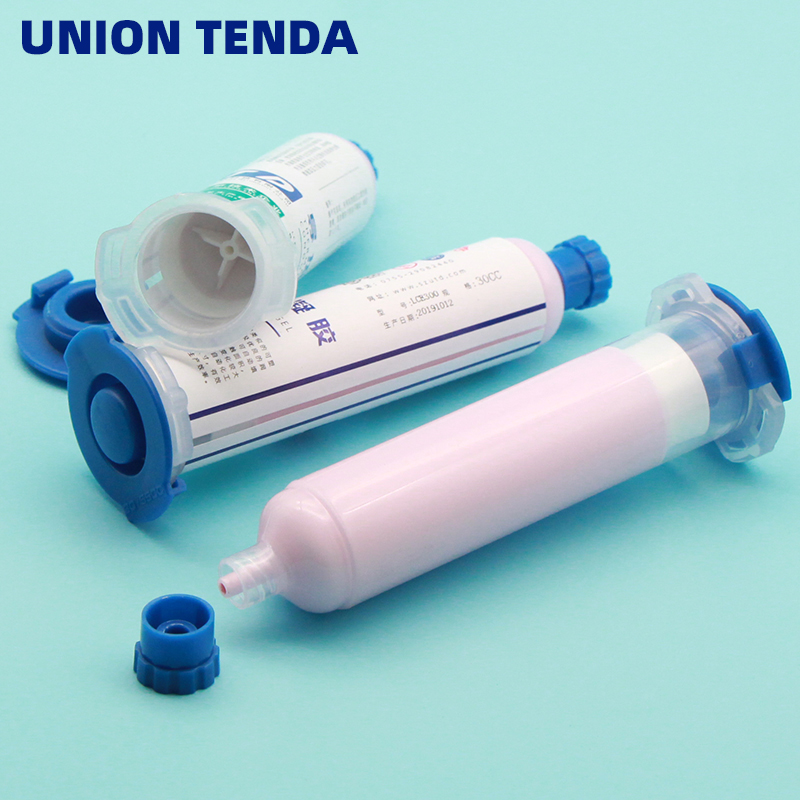

LCE300 3 W/m·K One Component Thermally Conductive Gel Heat Conductive Gel

Specification:
Excellent thermal conductivity
Stable performance
Soft, Low-Stress
Introduction:
LCE300 Thermally Conductive Gel 3 W/m·K | One Component
Thermal Conductivity:3.0±0.3 W/m·K
Thermal Impedance:0.058 ℃·in²/W
Extrusion Rate:≥40 g/min
BLT:≤30 μm
Operating Temperature:-40~150 ℃
  • Product introduction
  • Technical Parameters
  • Product Application
  • Product Characteristics

LCE300 One Component Thermally Conductive Gel | 3 W/m·K


LCE300 is a silicone-based, one component thermally conductive gel with a thermal conductivity of 3 W/m·K, designed for thermal management in electronic devices and electrical components. Its soft, paste-like consistency allows it to fill gaps between heat-generating components and heat sinks or enclosures, providing efficient heat transfer under low pressure.

This ready-to-use heat conductive gel requires no mixing and offers good thermal stability and electrical insulation. Suitable for applications requiring both heat conduction and gap filling, LCE300 supports effective cooling and long-term, stable device operation.

For businesses seeking a one component thermal gel supplier, LCE300 offers a ready-to-use material option for a wide range of electronic thermal management applications.

Test Item
Unit LCE300 Test Methods
Color
- Pink
Visually
Specific Gravity
g/cc
3.37 ASTM D792
Extrusion Rate
g/min
≥40
φ2.54mm 90psi
Thickness After Compression
mm
0.1
-
Weight Loss
% ≤0.3
@150℃240H
Breakdown Voltage
KV/mm
≥7
ASTM D149
Volume Resistivity
Ω·cm
1×1013
ASTM D257
Continuous Use Temp
℃
-40~150
-
Thermal Conductivity
W/m·K
3.0 ISO 22007-2
Thermal impedance
℃·in2 /W
0.058
ASTM D5470


Features and Advantages

3 W/m·K thermal conductivity: Provides efficient heat transfer while maintaining good electrical insulation.
Soft and moldable: Easy to handle and conform to gaps between electronic components and heat sinks or enclosures.
Ready to use: Requires no mixing before application.
Stable thermal performance: Maintains consistent performance across high and low temperatures for long-term reliability.
Material characteristics: Non-volatile, non-corrosive, environmentally friendly, and non-toxic.

Typical Applications

Electronic components and LED lighting: Transfers heat from integrated circuits (ICs), central processing units (CPUs), graphics processing units (GPUs), and LED lighting components to heat sinks.
Power electronics: Supports thermal management in power modules and power semiconductors.
Communications and server equipment: Suitable for cooling communication base stations, 5G devices, servers, and other electronic equipment with high heat output.

Solar photovoltaic modules: Provides thermal conduction in solar photovoltaic applications.



Test Item
Unit LCE300 Test Methods
Color
- Pink
Visually
Specific Gravity
g/cc
3.37 ASTM D792
Extrusion Rate
g/min
≥40
φ2.54mm 90psi
Thickness After Compression
mm
0.1
-
Weight Loss
% ≤0.3
@150℃240H
Breakdown Voltage
KV/mm
≥7
ASTM D149
Volume Resistivity
Ω·cm
1×1013
ASTM D257
Continuous Use Temp
℃
-40~150
-
Thermal Conductivity
W/m·K
3.0 ISO 22007-2
Thermal impedance
℃·in2 /W
0.058
ASTM D5470
Wireless electronic equipment
Communication electronic hardware equipment
Automotive electronic application equipment
Chassis or related heat dissipation module
Host or small office network equipment
Microprocessors, memory chips and graphics processors
High thermal conductivity, low thermal resistance, good wettability
No settlement, no flow, can fill any uneven gap
Soft, no stress, can be compressed to 0.1 mm thin
The design and application are convenient, and the automatic dispensing can adjust the size of any thickness
