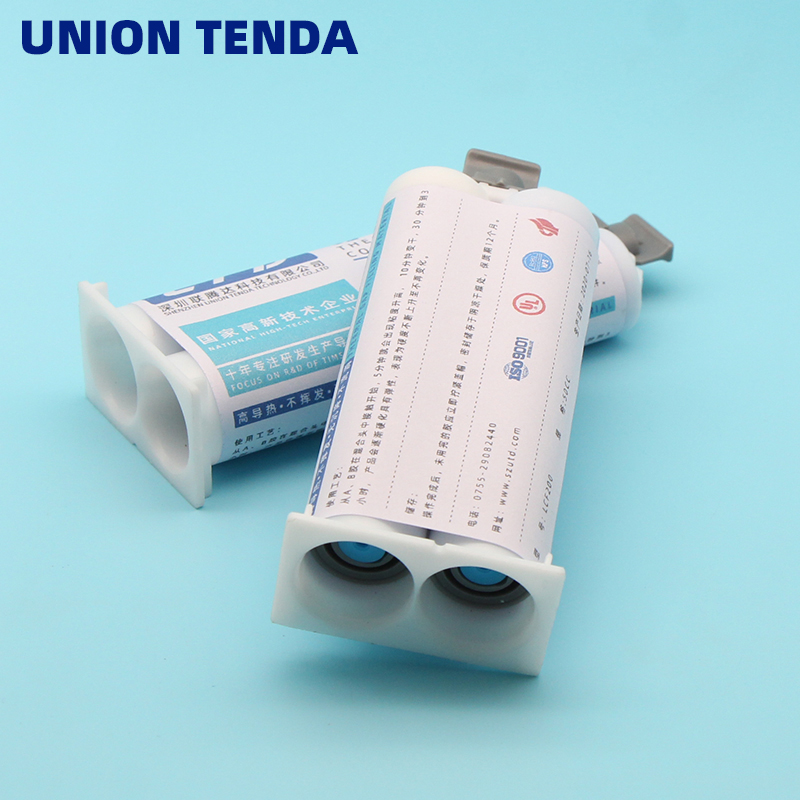

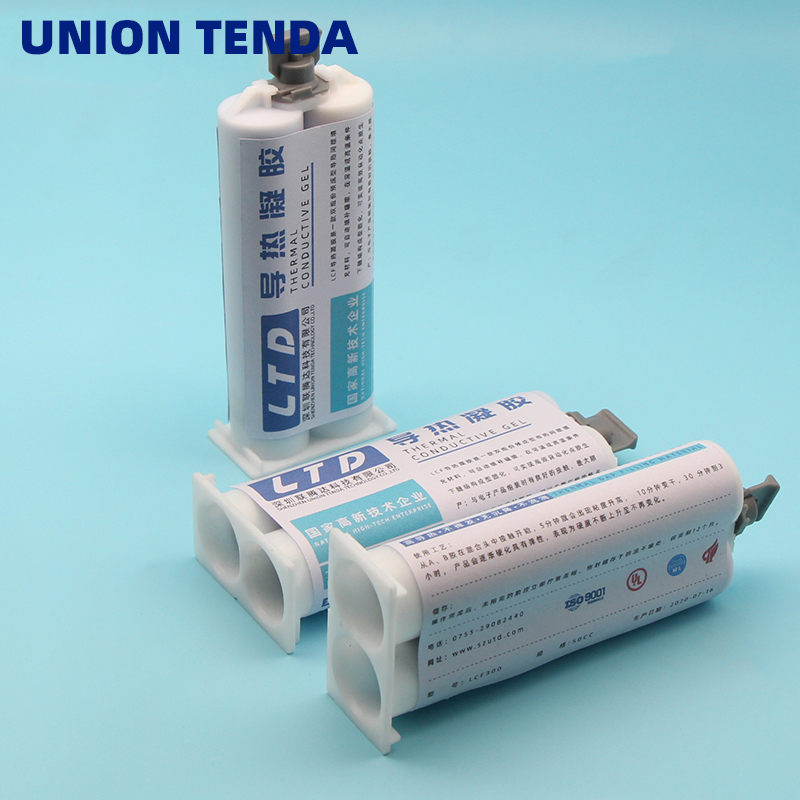

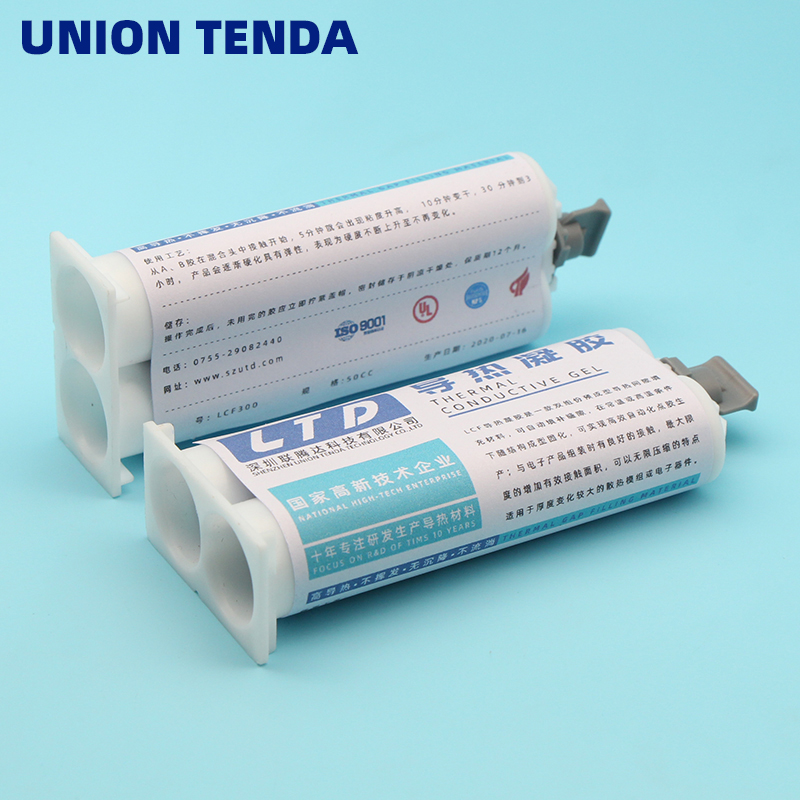

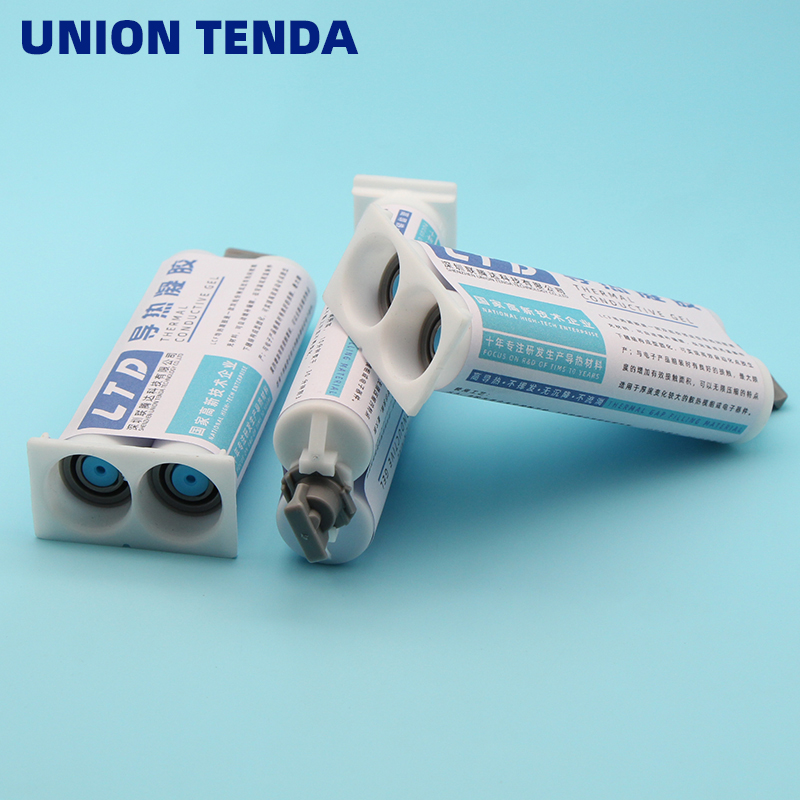

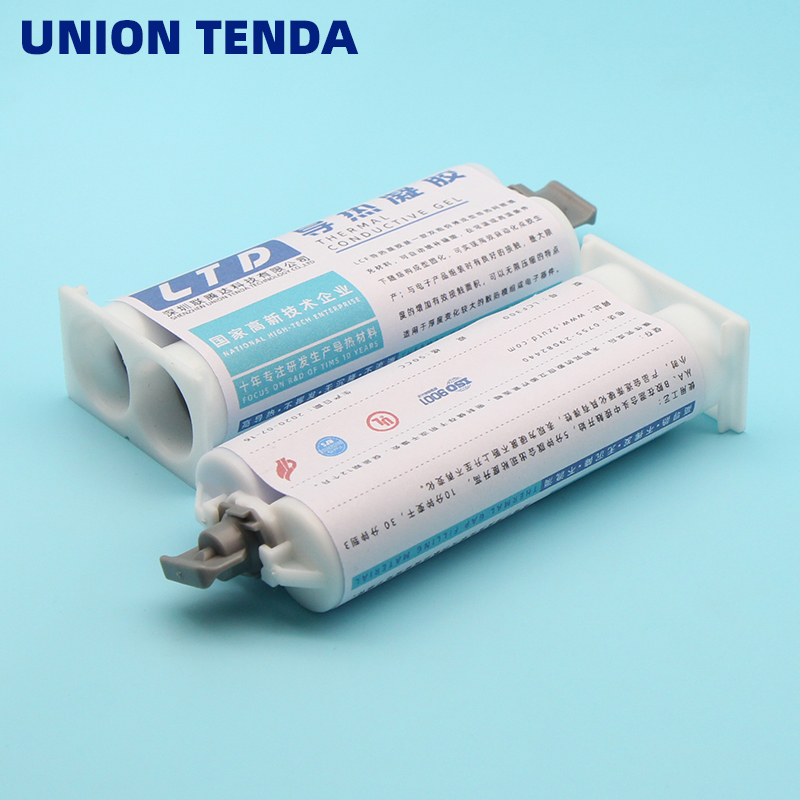

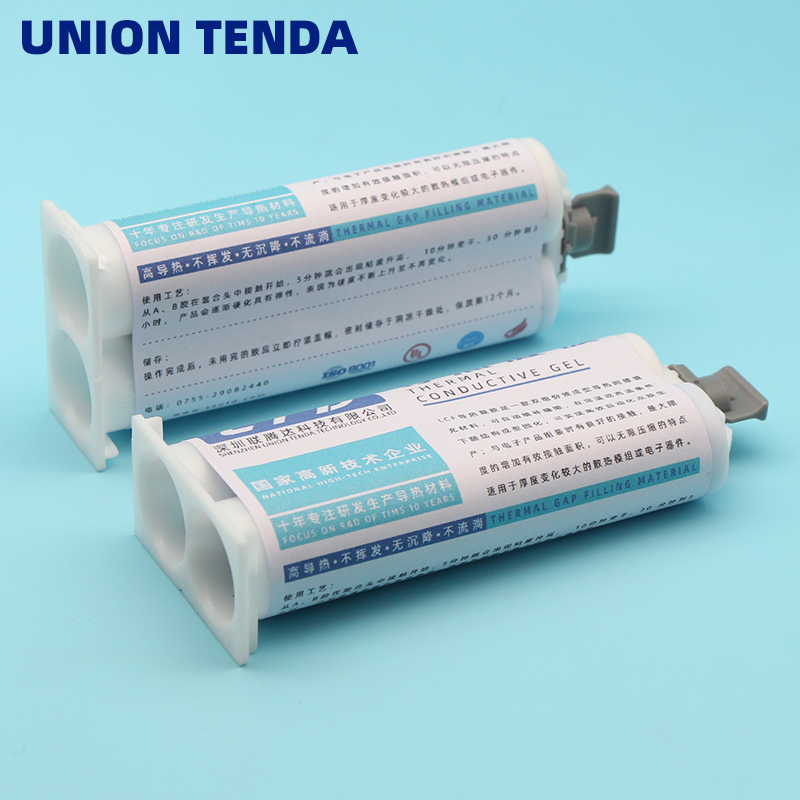

LCF800 8W/m·K Two-Component Low Thermal Resistance Thermal Conductive Gap Filler

Specification:
8 W/m·K Two-component Thermal Conductive Gel
Thermal Conductivity: 8.0±0.3 W/m·K
Thermal Resistance: 0.283 ℃·in²/W
Hardness: 70±10 Shore OO
Density:3.07±0.2 g/cm3
Introduction:
LCF800 is a two-component thermally conductive gel designed to fill gaps between electronic components and heat dissipation structures. With a thermal conductivity of 8.0 ± 0.3 W/m·K, it provides a conductive heat transfer path for electronic assemblies requiring efficient thermal management.
  • Product introduction
  • Technical Parameters
  • Product Application
  • Product Characteristics

LCF800 Two-Component Thermally Conductive Gel | 8.0 W/m·K


Dispensable Thermal Gap Filler for Electronic Assemblies


LCF800 is a two-component thermally conductive gel designed to fill gaps between electronic components and heat dissipation structures. With a thermal conductivity of 8.0 ± 0.3 W/m·K, it provides a conductive heat transfer path for electronic assemblies requiring efficient thermal management.


The material cures at room temperature or elevated temperatures to form a soft, thermally conductive elastomer. Before curing, it conforms to irregular mating surfaces and accommodates variations in gap thickness, helping improve surface contact and reduce thermal contact resistance. Once cured, it forms a compliant thermal interface similar to a thermal silicone pad.


Designed for automated metering, mixing, and dispensing, LCF800 supports controlled material placement across different component layouts and assembly geometries.


Test Items

Unit

LCF800

Test Standard

Appearance

-

A White/ B Gray

Visual

Mixing Ratio

-

1:1

-

Surface Drying Time

min

30~60

ASTM C679

Hardness

Shore AO

30±5

ISO 48-4

Hardness

Shore OO

70±10

ASTM D2240

Density

g/cm3

3.07±0.2

ASTM D792

Extrusion Rate

g/min

≥15

Φ1.85mm/90psi

Dielectric Strength

KV/mm

≥10

ASTM D149

Volume Resistivity

Ω·cm

≥1×1012

ASTM D257

Weight Loss

%

≤0.3

150℃240H

Thermal Conductivity

W/m·K

8.0±0.5

ISO 22007-2

Thermal Conductivity

W/m·K

8.0±0.5

ASTM D5470(Three-Thickness Fit)

Thermal Resistance

℃·in²/W

0.283

ASTM D5470(1mm )

Thermal Resistance

℃·cm²/W

1.826

ASTM D5470(1mm )

Flame Rating

Grade

V-0

UL94

Operating Temperature

℃

-40~150

-

Specific Heat Capacity

J/(g·K)

0.981

ASTM E1269



Key Features and Benefits


High Thermal Conductivity

A thermal conductivity of 8.0 ± 0.3 W/m·K supports heat transfer from heat-generating components to heat sinks, cooling plates, and other thermal management structures.


Low Thermal Resistance

LCF800 conforms to mating surfaces to help minimize interfacial air gaps and improve thermal contact. Its reported thermal resistance is 0.283 °C·in²/W under the applicable test conditions.


Low Oil Bleed

The low oil bleed formulation helps limit oil migration around the thermal interface, supporting cleaner electronic assemblies.


Low Assembly Stress

The compliant material accommodates dimensional tolerances and helps reduce mechanical stress on sensitive components during assembly.


Flexible Gap Filling

Its dispensable form allows the applied volume and pattern to be adjusted for uneven surfaces, complex geometries, and variations in component height.


Suitable for Automated Production

Two-component dispensing enables controlled application and integration into automated assembly processes. Room-temperature and heat-accelerated curing options provide flexibility in production planning.


Typical Applications

LCF800 is suitable for evaluation in electronic assemblies requiring high thermal conductivity, low oil bleed, and conformable gap filling, including:

  • Interfaces between electronic components and heat sinks or cooling plates

  • Power electronics and control modules

  • Thermal modules with uneven mating surfaces

  • Assemblies with varying component heights or gap dimensions

  • Production lines using automated thermal interface material dispensing


Discuss Your Thermal Interface Requirements

Contact us for the LCF800 technical data sheet and to discuss gap dimensions, dispensing requirements, curing conditions, and application suitability.


Test Item Unit
LCF800 Test Methods
Color A/B
- White + Gray
Visual
Extrusion Rate
g/min
10
90psi@φ1.85mm
Mixing ratio
- 1:1 ASTM D149
Hardness
Shore AO
30±5
GB/T531
Hardness
Shore OO
70±10
ASTM D2240
Specific Gravity
g/cm3 3.07
ASTM D792
Breakdown Voltage
KV/mm
≥8
ASTM D149
Volume Resistivity
Ω·cm
5×1012
ASTM D257
Weight Loss
% ≤0.3
@150℃240H
Continuous Use Temp
℃
-40~150
-
Flame Rating
- V-0 UL-94
Surface dry time
min 45 ASTM C679
Thermal Conductivity
W/m·K
8.0±0.3
ISO 22007
Thermal Conductivity
W/m·K
8.0±0.3
ASTM D5470
Thermal Impedance
℃·in2/W
0.283
ASTM D5470
Thermal Impedance
℃·cm2/W
1.826
ASTM D5470
Specific Heat Capacity
J/g/k
0.981
ASTM E1269

Network terminal /5G mobile phone communication
New energy battery
Automotive electronic application equipment
Electronic medical / power equipment
Between fragile components and housing
High thermal conductivity, low thermal resistance, good wettability
Lower assembly stress, easy to operate
High reliability, after curing, it is equivalent to thermal pad, no volatilization
Automatic dispensing adjustment of any thickness
After curing, the modulus is low, which greatly reduces the stress caused by thermal expansion and the damage caused by vibration
