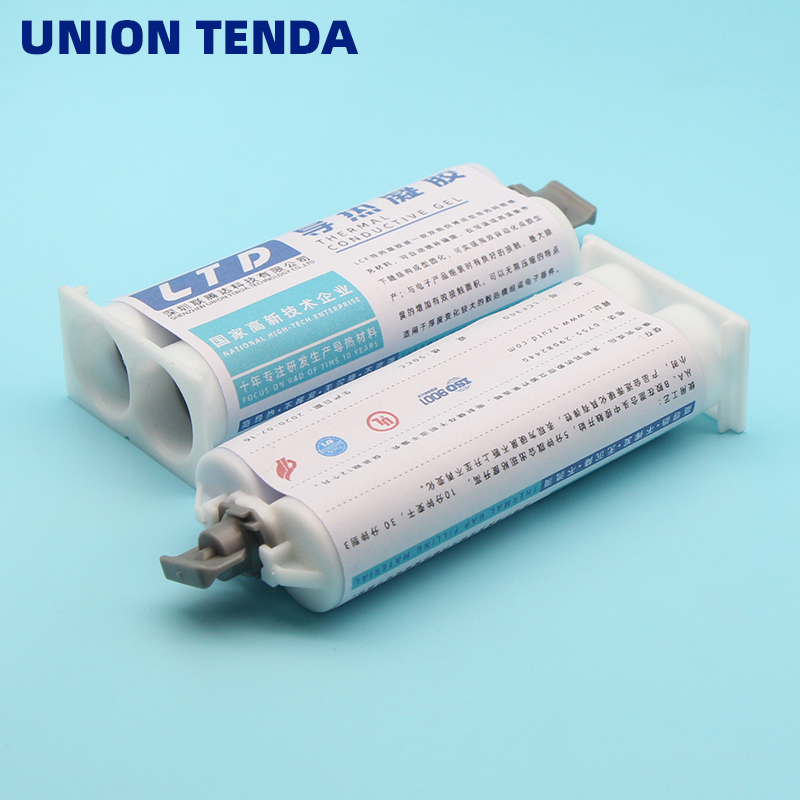

LCF600 6 W/m·K High Thermal Conductivity Two Component Thermal Gel

Specification:
6 W/m·K Two-component Thermal Conductive Gel
Thermal Conductivity: 6.0±0.3 W/m·K
Thermal Resistance: 0.318 ℃·in²/W
Hardness: 70±10 Shore OO
Density:3.26±0.2 g/cm3
Introduction:
6 W/m·K High Thermal Conductivity Two Component Thermal Gel
Two-component thermal conductive gel | LCF600
The LCF600 two-component thermal conductive gel is a preformed thermal gap filler material that can cure through a reaction at room temperature or high temperature, forming a soft, thermally conductive elastomer. It conforms to structural shapes and, once fully cured, functions similarly to a thermal silicone pad.
  • Product introduction
  • Technical Parameters
  • Product Application
  • Product Characteristics

6 W/m·K High Thermal Conductivity Two Component Thermal Gel


Two-component thermal conductive gel | LCF600


The LCF600 two-component thermal conductive gel is a preformed thermal gap filler material that can cure through a reaction at room temperature or high temperature, forming a soft, thermally conductive elastomer. It conforms to structural shapes and, once fully cured, functions similarly to a thermal silicone pad.


Designed to meet the low-pressure, high-compression modulus requirements during product use, it supports automated dispensing for high efficiency. It ensures good contact with electronic assemblies, enhancing the effective contact area and reducing thermal contact resistance.


Its ability to automatically fill gaps and provide unlimited compression makes it ideal for thermal modules or electronic components with significant thickness variations.

Test Items

Unit

LCF600

Test Standard

Appearance

-

A White/ B Gray

Visual

Mixing Ratio

-

1:1

-

Surface Drying Time

min

30~60

ASTM C679

Hardness

Shore AO

30±5

ISO 48-4

Hardness

Shore OO

70±10

ASTM D2240

Density

g/cm3

3.26±0.2

ASTM D792

Extrusion Rate

g/min

≥15

Φ1.85mm/90psi

Dielectric Strength

KV/mm

≥7

ASTM D149

Volume Resistivity

Ω·cm

≥1×1012

ASTM D257

Weight Loss

%

≤0.3

150℃240H

Thermal Conductivity

W/m·K

6.0±0.3

ISO 22007-2

Thermal Conductivity

W/m·K

6.0±0.3

ASTM D5470(Three-Thickness Fit)

Thermal Resistance

℃·in²/W

0.318

ASTM D5470(1mm )

Thermal Resistance

℃·cm²/W

2.050

ASTM D5470(1mm )

Flame Rating

Grade

V-0

UL94

Operating Temperature

℃

-40~150

-

Specific Heat Capacity

J/(g·K)

0.821

ASTM E1269

Features and Advantages

-Ultra-high thermal conductivity, low thermal resistance, and good insulation properties



-Lower assembly stress, easy to handle


-High reliability; once cured, it functions like a thermal pad and is environmentally friendly with no volatile compounds


-Supports automated dispensing with adjustable dimensions


-Low modulus after curing, providing some support and shock absorption

Typical Applications

-Thermal management for network terminals and 5G communication equipment



-Thermal management for power modules and power semiconductors


-Heat dissipation for high-heat-generating electronic devices, such as communication base stations, 5G devices, and servers


-Thermal management for battery management systems


-Heat conduction in home appliances and industrial equipment

Test Item Unit
LCF600 Test Methods
Color A/B
- White + Gray
Visual
Extrusion Rate
g/min
15
90psi@φ1.85mm
Mixing ratio
- 1:1 ASTM D149
Hardness
Shore AO
30±5
GB/T531
Hardness
Shore OO
70±10
ASTM D2240
Specific Gravity
g/cm3 3.26
ASTM D792
Breakdown Voltage
KV/mm
≥10
ASTM D149
Volume Resistivity
Ω·cm
1×1012
ASTM D257
Weight Loss
% ≤0.3
@150℃240H
Continuous Use Temp
℃
-40~150
-
Flame Rating
- V-0 UL-94
Surface dry time
min 45 ASTM C679
Thermal Conductivity
W/m·K
6.0±0.3
ISO 22007
Thermal Conductivity
W/m·K
6.0±0.3
ASTM D5470
Thermal Impedance
℃·in2/W
0.318
ASTM D5470
Thermal Impedance
℃·cm2/W
2.050
ASTM D5470
Specific Heat Capacity
J/g/k
0.812
ASTM E1269

Network terminal /5G mobile phone communication
New energy battery
Automotive electronic application equipment
Electronic medical / power equipment
Between fragile components and housing
High thermal conductivity, low thermal resistance, good wettability
Lower assembly stress, easy to operate
High reliability, after curing, it is equivalent to thermal pad, no volatilization
Automatic dispensing adjustment of any thickness
After curing, the modulus is low, which greatly reduces the stress caused by thermal expansion and the damage caused by vibration
