LC300RS Thermally Conductive EMI Absorber Pad | Silicone Thermal Gap Pad

The LC300RS thermally conductive EMI absorber pad combines heat dissipation and electromagnetic wave absorption in a single silicone-based material. Like conventional thermal interface materials, it can be installed directly between a heat-generating component and a heat sink, providing a thermal transfer path while absorbing electromagnetic energy to help reduce electromagnetic interference (EMI).

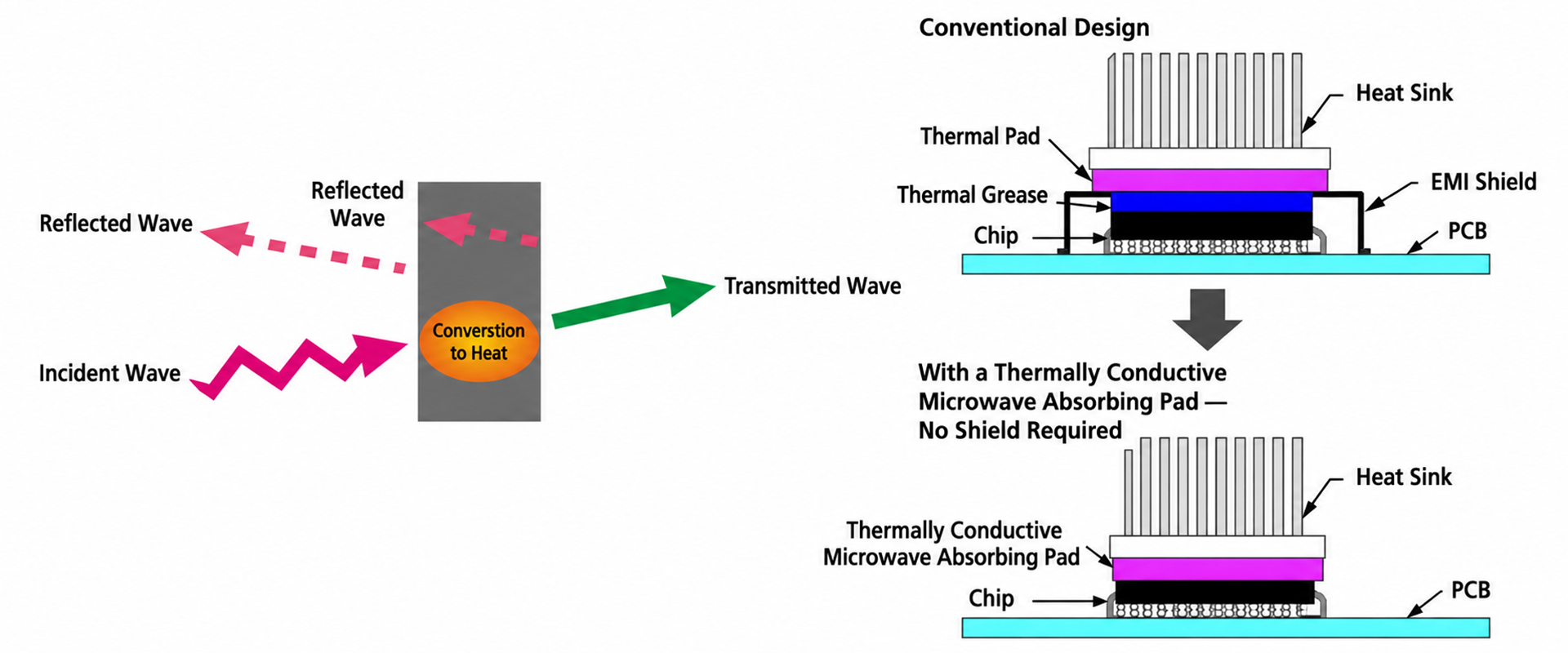

By integrating thermal management and EMI suppression, LC300RS helps simplify mechanical design in space-constrained electronic assemblies. Depending on the application and verified EMI performance, it may reduce or eliminate the need for separate shielding cans, helping reduce component count, assembly complexity, and overall costs.

The soft silicone base conforms to mating surfaces and accommodates dimensional tolerances, helping reduce mechanical stress on components and supporting reliable assembly. LC300RS is suitable for thermal management and EMI suppression in electronic and communication equipment.

Features and Benefits

• Dual-function performance: Combines thermal conductivity and electromagnetic wave absorption in one pad.



• Easy assembly and rework: Naturally tacky surfaces facilitate installation, removal, and reassembly.

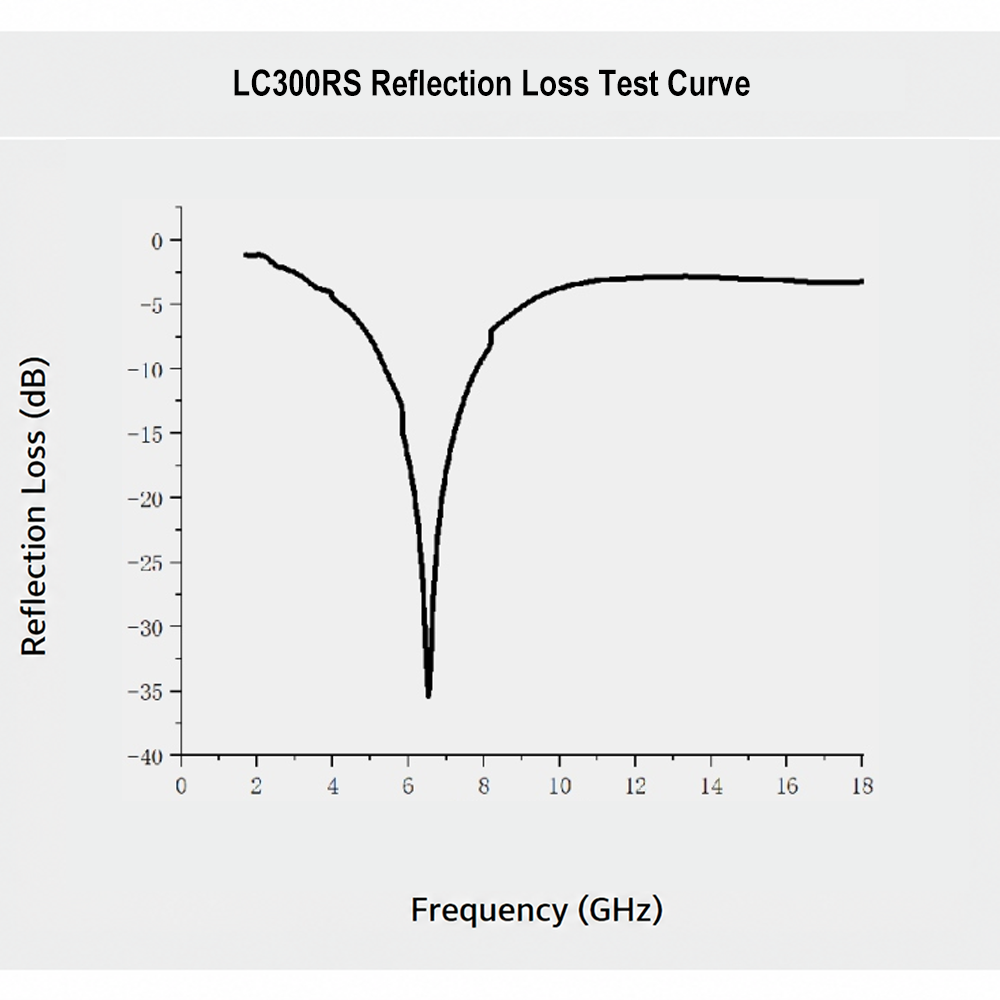

• Absorption performance: Provides stable reflection loss performance and strong peak absorption under specified test conditions.



• Conformable silicone material: Helps accommodate surface irregularities and assembly tolerances while reducing component stress.



• Simplified system design: May reduce reliance on separate shielding components where application testing confirms suitability.



• Flame retardancy: V-0 rating, subject to the applicable test standard and rated material thickness.
