2.0 W/m·K 0.921 ℃·in²/W Thermally Conductive EMI Absorber Gap Pads | LC200RS

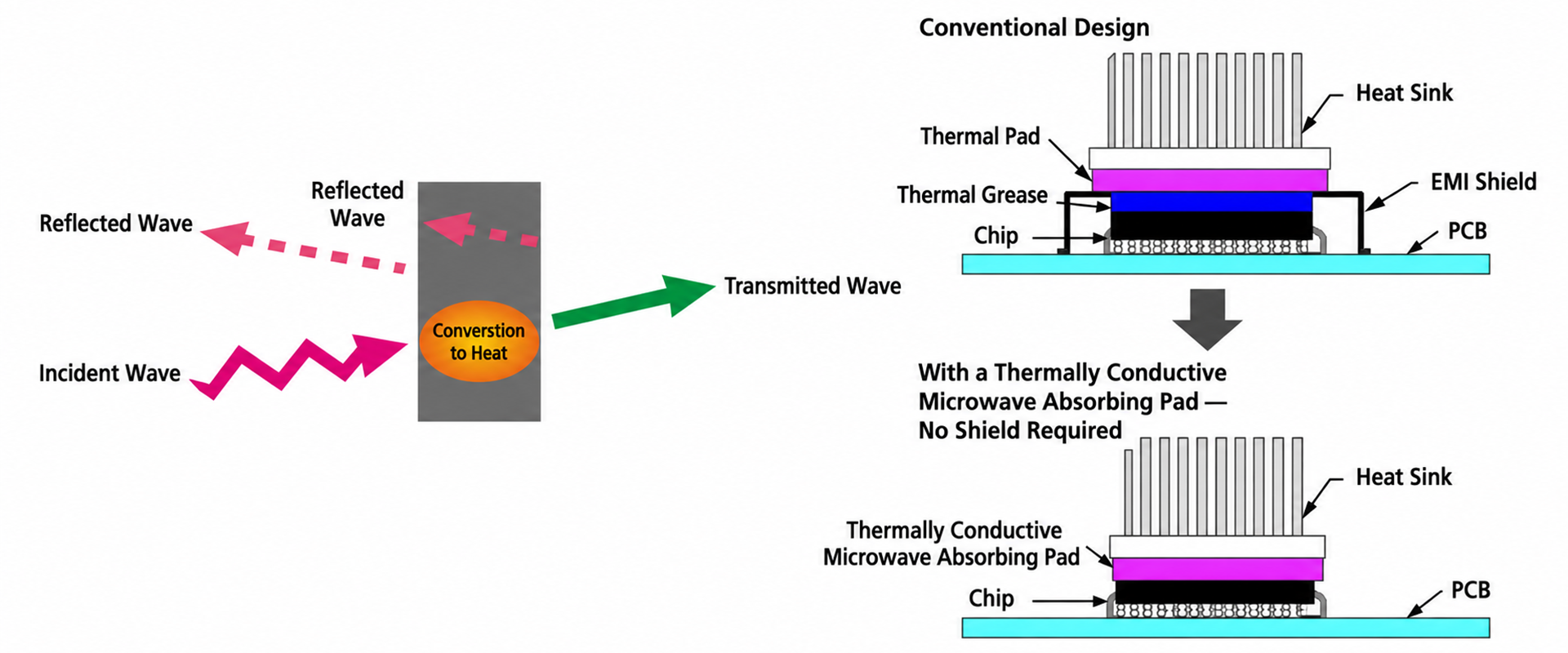

The LC200RS Thermal Conductive Absorbing Gasket, Like Traditional Thermal Interface Materials, Can Be Directly Applied Between The Heat Source And The Heat Sink. While Conducting Heat Away, It Absorbs Leaked Electromagnetic Radiation, Achieving The Purpose Of Eliminating Electromagnetic Interference.
This Thermal Conductive Absorbing Material Combines Both Thermal Management And Electromagnetic Wave Countermeasures, Integrating Dual Functions Into A Single Material. It Eliminates The Need For Shielding Cans, Solves Problems Within Limited Space And Time, Simplifies Structural Design, And Reduces Costs.
Additionally, The Soft Silicone Base Material Helps Reduce Internal Stress And Tolerances, Enabling Higher Reliability Designs For End Products. It Provides An Excellent Solution For Thermal Management And Electromagnetic Shielding In Electronic Communication Products.
|

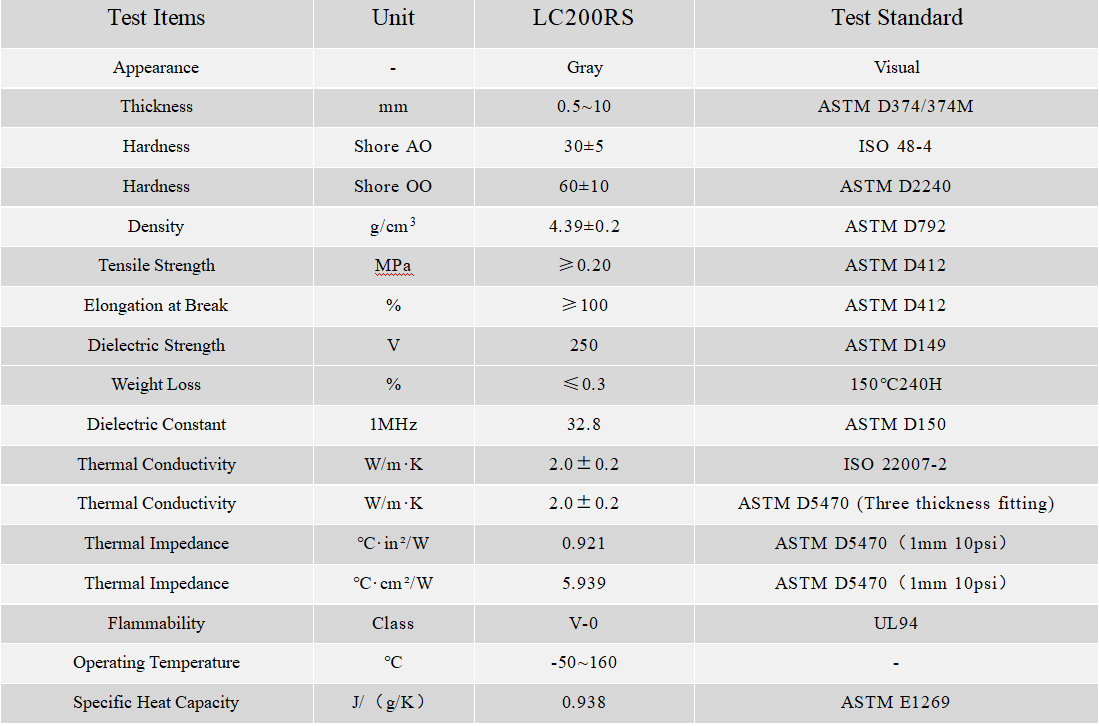

Test Items |
Unit |
LC200RS |
Test Standard |
|
Appearance |
- |
Gray |
Visual |
|
Thickness |
mm |
0.5~10 |
ASTM D374/374M |
|
Hardness |
Shore AO |
30±5 |
ISO 48-4 |
|
Hardness |
Shore OO |
60±10 |
ASTM D2240 |
|
Density |
g/cm3 |
4.39±0.2 |
ASTM D792 |
|
Tensile Strength |
MPa |
≥0.20 |
ASTM D412 |
|
Elongation at Break |
% |
≥100 |
ASTM D412 |
|
Dielectric Strength |
V |
250 |
ASTM D149 |
|
Weight Loss |
% |
≤0.3 |
150℃240H |
|
Dielectric Constant |
1MHz |
32.8 |
ASTM D150 |
|
Thermal Conductivity |
W/m·K |
2.0±0.2 |
ISO 22007-2 |
|
Thermal Conductivity |
W/m·K |
2.0±0.2 |
ASTM D5470 (Three thickness fitting) |
|
Thermal Impedance |
℃·in²/W |
0.921 |
ASTM D5470（1mm 10psi） |
|
Thermal Impedance |
℃·cm²/W |
5.939 |
ASTM D5470（1mm 10psi） |
|
Flammability |
Class |
V-0 |
UL94 |
|
Operating Temperature |
℃ |
-50~160 |
- |
|
Specific Heat Capacity |
J/（g/K） |
0.938 |
ASTM E1269 |
-Combines dual functions of wave absorption and thermal conductivity
-Naturally tacky for easy assembly and repeated disassembly

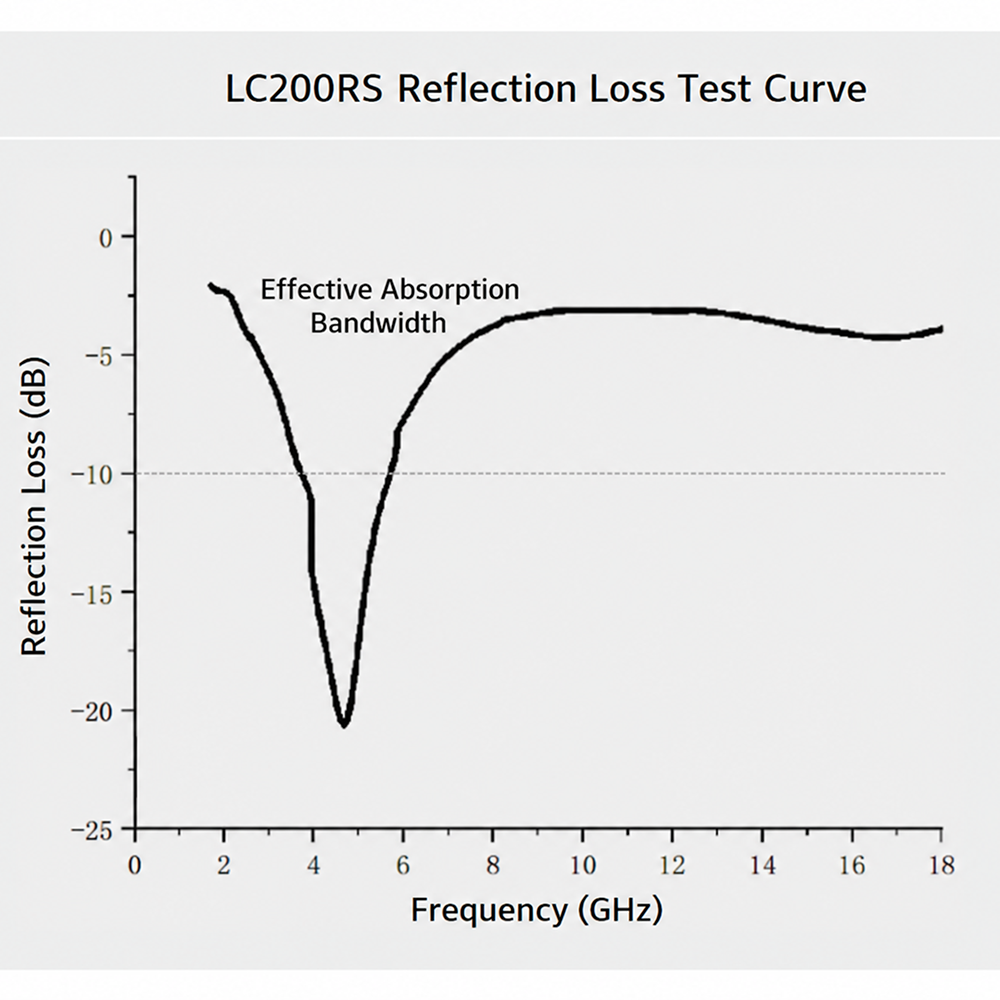

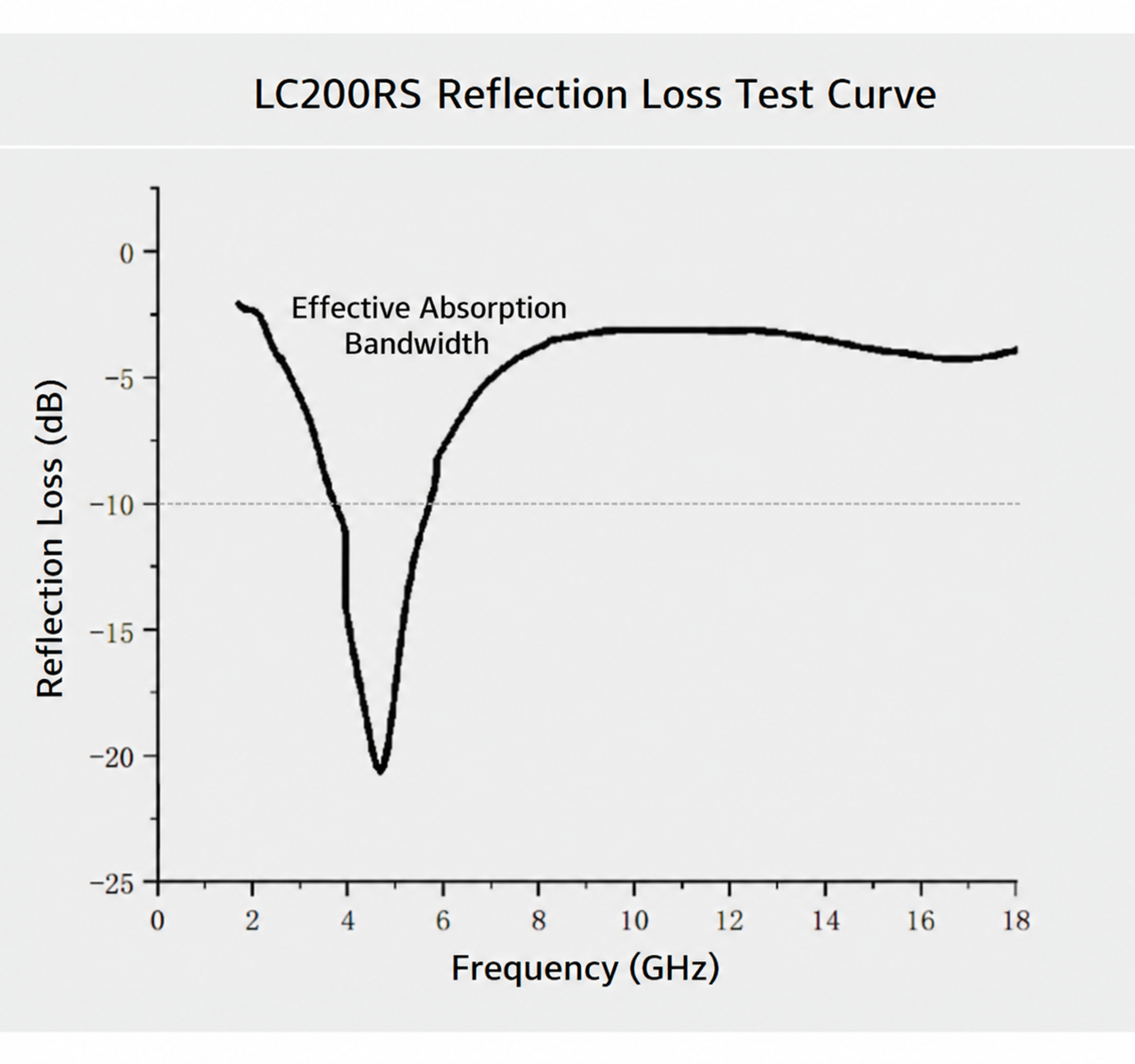

-Stable reflection loss performance with high peak absorption strength
-Flame retardant (V-0 rating) and eco-friendly material
Typical Applications
-Commercial Communications: Antennas/Base Stations/Optical Modules/Routers/Switches, etc.
-Millimeter Wave Applications: 5G Communication/mmWave Radar
-Industrial Electronics: Automotive Electronics/Drones, etc.
-Instrumentation: Power Amplifiers/Filters/Test Systems
Features and Advantages
-Combines dual functions of wave absorption and thermal conductivity
-Naturally tacky for easy assembly and repeated disassembly
-Stable reflection loss performance with high peak absorption strength
-Flame retardant (V-0 rating) and eco-friendly material
